Hozan L-46 STEREO MICROSCOPE(ZOOM TYPE)
Hozan L-46 STEREO MICROSCOPE(ZOOM TYPE)
₹0.00*
Product information "Hozan L-46 STEREO MICROSCOPE(ZOOM TYPE)"

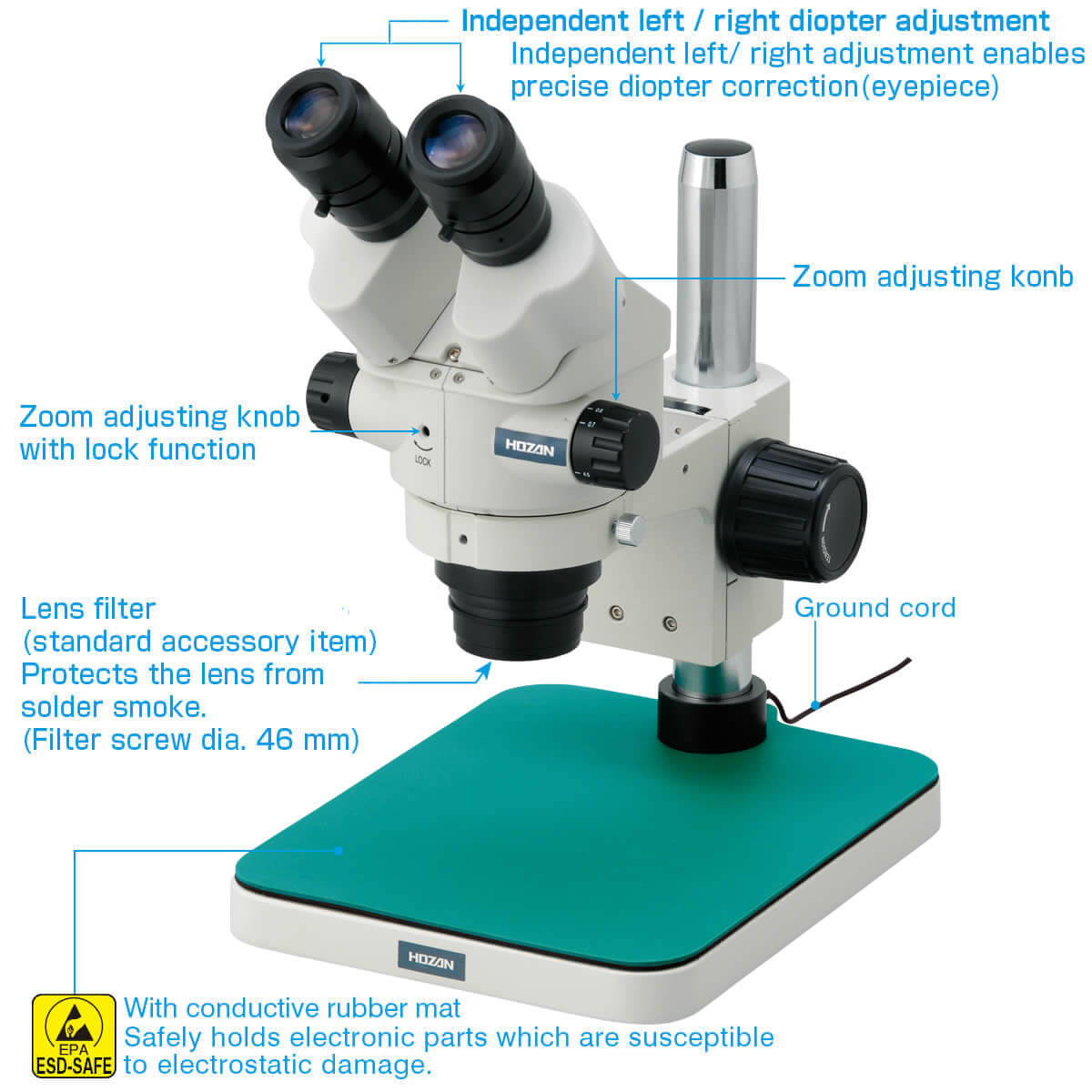

L-46 STEREO MICROSCOPE(ZOOM TYPE)
| Total magnification | 7 to 45 X |
|---|---|
| Objective lens | 0.7 to 4.5 X（zoom ratio 6.4） |
| Eyepiece | WF10X（L-546-10） |
| Sight adjustment | Independent left / right adjustment type, ± 5 Dptr |
| Working distance | 84 mm （equipped with lens filter / ring） |
| Focus adjustmen | Head scope up / down type （adjustable range:50 mm） |
| Stereo head spec. | Binocular 45° Tilted Head scope |
| Eye width adjustment range | 54 to 75 mm、left / right interlocking type |
| Table dimensions | 200（W）× 255（D）mm |
| Support height | 282 mm |
| Distance from lens center to support | 133 mm |
| Weight | 4.2 kg |
■Accessories: Ground cord, 2 clips (clamps)
