Hozan H-42 / H-700 to H-716 Solder
Hozan H-42 / H-700 to H-716 Solder
₹2,630.00*
Product information "Hozan H-42 / H-700 to H-716 Solder"
H-712 / H-714 / H-716
SOLDER (non-washing, ROL1 type)

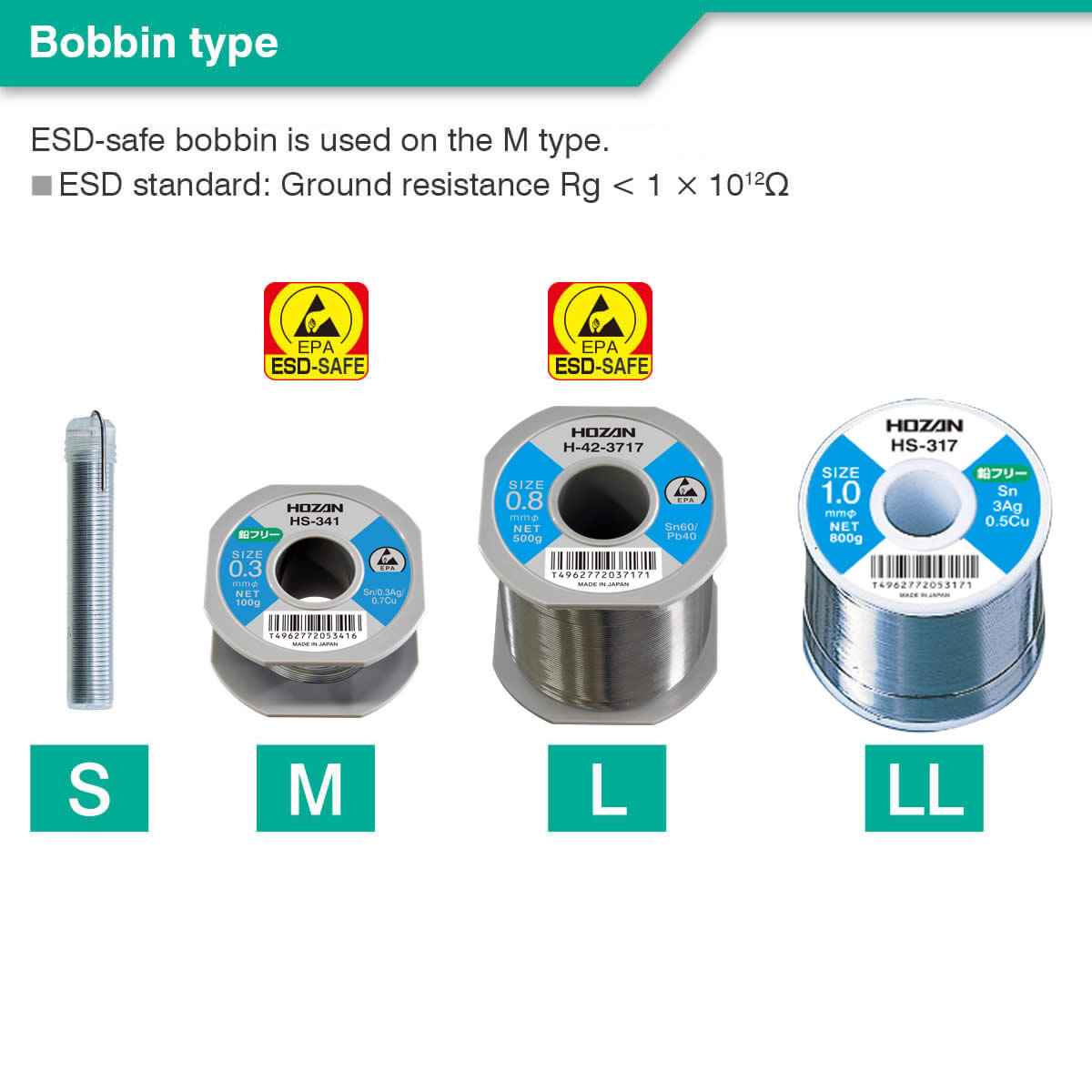

Uses an ESD-safe bobbin.
H-710
SOLDER FOR STAINLESS STEEL
Usable with nearly all metals (stainless, nichrome, copper, brass, nickel plating, galvanized, bimetal, tin plate, steel, etc.) except for aluminum and titanium.
| Plastic characteristics | Component | Solid / liquid phase temperature | Wire dia. mmφ | Weight g | Length m (reference) | Bobbin type | Part No. | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.3 | 0.6 | 0.8 | 1.0 | 1.6 | |||||||
 | Sn60-Pb40 | 183℃ / 190℃ | ● | 100 | 200 | M | H-712 | ||||
| ● | 200 | 95 | H-714 | ||||||||
 | ● | 20 | 4.2 | S | H-711 | ||||||
| ● | 200 | 53 | M | H-42-3707 | |||||||
| ● | 500 | 134 | L | H-42-3717 | |||||||
| ● | 20 | 3.4 | S | H-700 | |||||||
| ● | 200 | 34 | M | H-716 | ||||||
| ● | 500 | 86 | L | H-42-3719 | ||||||
| ● | 1000 | 172 | LL | H-42-3720 | |||||||
| Sn50-Pb50 | 183℃ / 215℃ | ● | 200 | 33 | M | H-42-3703 | |||||
| ● | 1000 | 166 | LL | H-42-3723 | |||||||
| ● | 200 | 13 | M | H-42-3705 | |||||||
| ● | 1000 | 64 | LL | H-42-3725 | |||||||
| - | Sn40-Pb60 | 183℃ / 234℃ | ● | 40 | 2.5 | S | H-710 | ||||
